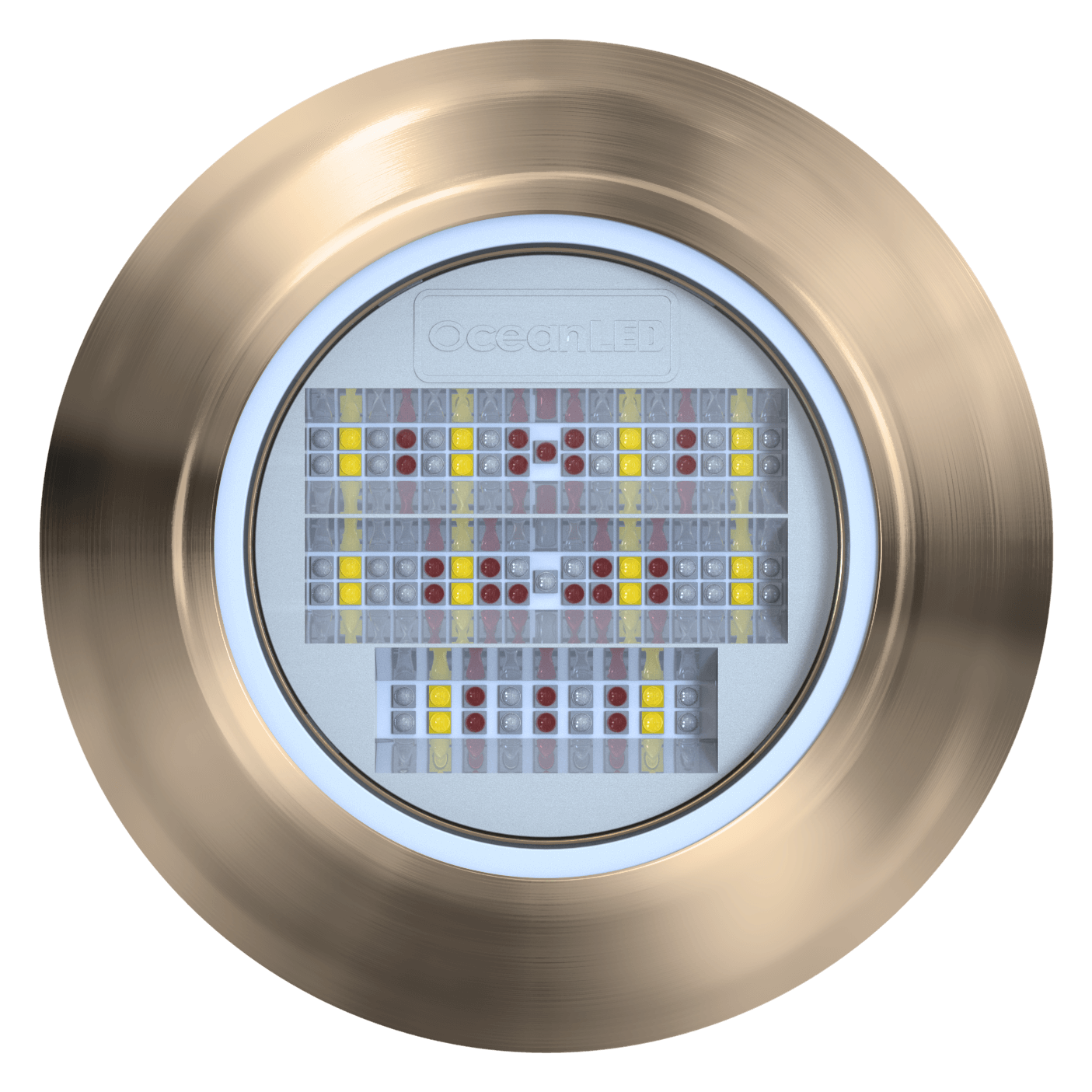

Explore E6 TH

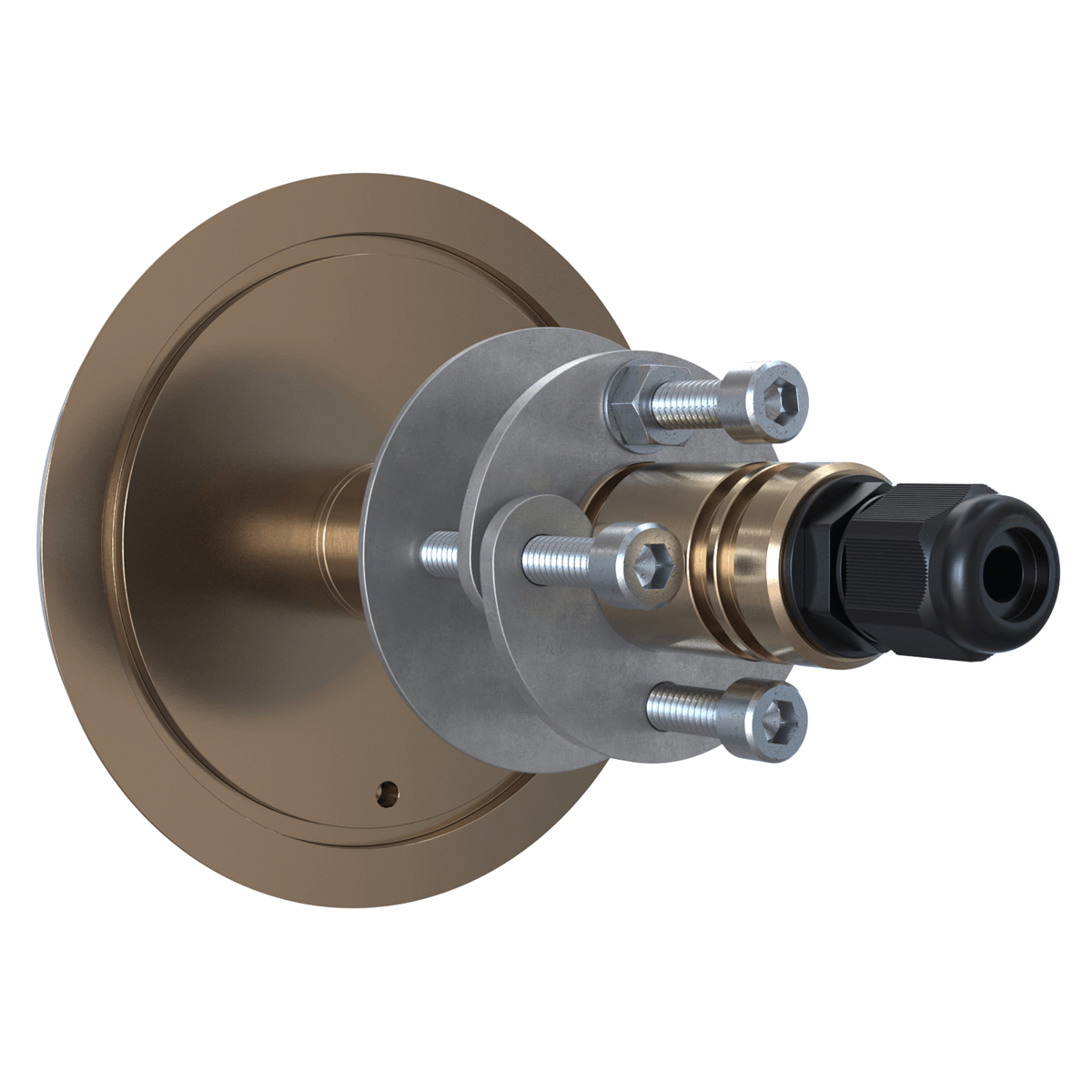

The Explore Thru-Hull range has been developed specifically for those who wish to minimise the hole cut-out required to install underwater lights, whilst still achieving the big fixture lumen figures and light angling abilities that come with XFM underwater lights. The slimline design of the Thru-Hull series only requires a 25mm (0.94”) cut-out, ensuring easy installation and your peace of mind.
The Explore Thru-Hull variant is available in E6 and E7 formats producing up to 11,000 fixture lumens in single, dual or full colour options. The Explore Thru-Hull series boasts the unmatched lighting effects achieved by our XFM models. Utilising the same advanced underwater light optic technology found in our superyacht range, the E6 and E7 Thru-Hull lights give you far superior light penetration.
$2,520.00 – $2,800.00 Ex. Tax
Delivery
Returns
Warranty
Payment
Orders Shipped
We do our best to get all orders out within two business day, Monday through Friday.
Depending on your chosen shipping address, courier delivery times are usually between one and five days for delivery.
Orders placed during the week and before midday will typically be delivered within three days.
Orders placed on the weekend will be shipped on Monday. (Out of stock items will take longer).
We use UPS and DHL as our delivery partner, with daily pick-ups from our warehouse.
We aim to deliver your order as quickly as possible. However, if your order is delayed for any reason, we will let you know.
OceanLED stands behind the quality of everything we sell and hope you’re happy with your purchase. Our products are warranted against defects in materials and workmanship with a two or three-year warranty.
In addition, if you’re unsatisfied with products you purchased directly from OceanLED.com, you can return your item(s) as follows:
Items purchased online can be returned online to OceanLED within 30 days of purchase.
You must have an original receipt to complete your return.
Items must be unused, unopened and in a saleable condition.
You will be responsible for the goods until they reach us, so it is our recommendation that you use a secure delivery method which requires a signature on delivery.
Note that items purchased at a 3rd party or re-seller must be returned at those locations and are subject to the 3rd party’s return policy.
CLICK HERE for return instructions and T&C’s.
OceanLED stands by its products. In general terms, the company gives a full 2- or 3-years’ manufacturer’s warranty on all its products from date of sale from OceanLED. The warranty period for a specific product can be found in the downloadable list of product warranty periods here.
If you purchased your lights directly from OceanLED:
Please contact us directly, complete appropriate troubleshooting and collate the following information:
- Customer name
- Current location of the vessel or products
- Description of the failure in detail along with photographic evidence
- Details of any tests that have already been conducted
- Serial numbers and/or any proof of purchase from OceanLED and onward sales
Troubleshooting guidelines can be found within the relevant product manuals, which are available on each product’s information page on our website.
Full terms and conditions can be found here.
Technical details & documents
Got a question? Speak to our team of experts to help you with your lighting choice
-
Fixture Lumens Up to 11,000 IP Rating IP69k Certified Min-Max Operating voltage DC 10-32V DC Dual Colour Current / Amp draw (12V DC / 24V DC) 7.8A / 4.7A Colours DMX Current / Amp draw (12V DC / 24V DC) 6.8A / 3.2A Min-Max Operating voltage AC 100V – 240V AC Dual Colour Current / Amp draw (110V AC / 230V AC) 1,190mA / 570mA Colours DMX Current / Amp draw (110V AC / 230V AC) 830mA / 400mA -
Footprint Diameter 110mm (4.33”) Stem Diameter 25mm (0.94″) Overall Length 152mm (5.98”) Hole Cut-Out 26mm (1”) Total Weight 1.06kg (3.5lbs) Material AB2 Aluminium Bronze -
Boat size 12m + Transom / Hull spacing 0.5 – 1.2m (2-4’) Installation depth below waterline 25 – 30cm (10-12”) -
Explore DC Power Kit 019903 Explore AC Power Kit 019904 Control Cable and Terminator Kit 012923 Explore E6/E7 Control Link Cable (3m) 012924 Explore E6/E7 Control Link Cable (5m) 012925 Explore E6/E7 Control Link Cable (10m) 012926 Explore E6/E7 Control Link Cable (15m) 012927 Explore E6/E7 Control Link Cable (20m) 012928
Related products
W: 210mm/8.27 inches
H: 91mm/3.58 inches
Patented
Control options
Bluetooth, Remote, Touch Screen, WiFi
Waterproof rating
IP66
Integration
Ethernet, NMEA 2000
MFD compatibility
Universal
